Vue首屏加载提升

本文部分思路源自：

vue-cli 3.0 build包太大导致首屏过长的解决方案 (opens new window)

发布前端项目时因chunk-vendors过大导致首屏加载太慢，Vue Build时chunk-vendors的优化方案 (opens new window)

# 开头

在没有进行优化之前，我的网站加载js文件需要25s,这大大的降低了其他人访问我网站的兴趣，所以适当的优化是不可少的。

# 优化点一

压缩成gzip格式：

安装插件

npm install --save-dev compression-webpack-plugin

vue.config.js配置插件

const CompressionWebpackPlugin = require('compression-webpack-plugin');
const productionGzipExtensions = ['js', 'css'];
const isProduction = process.env.NODE_ENV === 'production';
module.exports = {
  transpileDependencies: ["vuetify"],
  outputDir: __dirname + "/../server/web",
  publicPath: process.env.NODE_ENV === 'production'
    ? '/web/'
    : '/',
    configureWebpack: config => {
      if (isProduction) {
        config.plugins.push(new CompressionWebpackPlugin({
          algorithm: 'gzip',
          test: new RegExp('\\.(' + productionGzipExtensions.join('|') + ')$'),
          threshold: 10240,
          minRatio: 0.8
        }))
      }
    }
};

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21

nginx配置

# gzip config
    gzip on;
    gzip_min_length 1k;
    gzip_comp_level 9;
    gzip_types text/plain application/javascript application/x-javascript text/css application/xml text/javascript application/x-httpd-php image/jpeg image/gif image/png;
    gzip_vary on;
    gzip_disable "MSIE [1-6]\.";

1
2
3
4
5
6
7

完整示例

server {
    listen 80;
    # gzip config
    gzip on;
    gzip_min_length 1k;
    gzip_comp_level 9;
    gzip_types text/plain application/javascript application/x-javascript text/css application/xml text/javascript application/x-httpd-php image/jpeg image/gif image/png;
    gzip_vary on;
    gzip_disable "MSIE [1-6]\.";

    root /usr/share/nginx/html;

    location / {
        # 用于配合 browserHistory 使用
        try_files $uri $uri/ /index.html;

        # 如果有资源，建议使用 https + http2，配合按需加载可以获得更好的体验
        # rewrite ^/(.*)$ https://preview.pro.loacg.com/$1 permanent;

    }
    location /api {
        proxy_pass https://preview.pro.loacg.com;
        proxy_set_header   X-Forwarded-Proto $scheme;
        proxy_set_header   Host              $http_host;
        proxy_set_header   X-Real-IP         $remote_addr;
    }
}

server {
  # 如果有资源，建议使用 https + http2，配合按需加载可以获得更好的体验
  listen 443 ssl http2 default_server;

  # 证书的公私钥
  ssl_certificate /path/to/public.crt;
  ssl_certificate_key /path/to/private.key;

  location / {
        # 用于配合 browserHistory 使用
        try_files $uri $uri/ /index.html;

  }
  location /api {
      proxy_pass https://preview.pro.loacg.com;
      proxy_set_header   X-Forwarded-Proto $scheme;
      proxy_set_header   Host              $http_host;
      proxy_set_header   X-Real-IP         $remote_addr;
  }
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48

打包后的gzip文件可以达到原有的20%

# 优化点二

路由懒加载

结合Vue的异步组件再结合webpack的代码分割，我们可以轻松的实现路由懒加载。

// 安装插件 syntax-dynamic-import
cnpm install --save-dev @babel/plugin-syntax-dynamic-import

// 修改babel.config.js
module.exports = {
  presets: [
    '@vue/cli-plugin-babel/preset'
  ],
  plugins: ['@babel/plugin-syntax-dynamic-import']
}

1
2
3
4
5
6
7
8
9
10
11

// 修改路由组件的加载（router/index.js）
import Vue from "vue";
import VueRouter from "vue-router";
import NotFound from "../views/404";
import Comment from "../views/Comment" //我这个组件有bug,就不做懒加载了

Vue.use(VueRouter);

const routes = [
  {
    path: "/",
    name: "home",
    component: resolve => require(['../views/Home'], resolve)
  },
  {
    path: "/home",
    component: resolve => require(['../views/Home'], resolve)
  },
  {
    path: "/home/:id",
    component: resolve => require(['../views/ArticleList'], resolve),
    props: true
  },
  {
    path: "/home/article/:id",
    component: resolve => require(['../views/Article'], resolve),
    props: true
  },
  {
    path: "/image",
    component: resolve => require(['../views/Image'], resolve),
  },
  {
    path: "/article",
    component: resolve => require(['../views/ArticleRecent'], resolve),
  },
  {
    path: "/image/:id",
    component: resolve => require(['../views/ImageList'], resolve),
    props: true
  },
  {
    path: "/site",
    component: resolve => require(['../views/Site'], resolve),
  },
  {
    path: "/site/:id",
    component: resolve => require(['../views/SiteList'], resolve),
    props: true
  },
  {
    path: "/about",
    name: "about",
    // route level code-splitting
    // this generates a separate chunk (about.[hash].js) for this route
    // which is lazy-loaded when the route is visited.
    component: () =>
      import(/* webpackChunkName: "about" */ "../views/About.vue")
  },
  {
    path: "/search/:title",
    component: resolve => require(['../views/SearchList'], resolve),
    props: true
  },
  {
    path: "/404",
    component: resolve => require(['../views/404'], resolve),
  },
  {
    path:"/privacy",
    component: resolve => require(['../views/Privacy'], resolve),
  },
  {
    path:"/log",
    component: resolve => require(['../views/Log'], resolve),
  },
  {
    path:"/link",
    component: resolve => require(['../views/Link'], resolve),
  },
  {
    path:"/comment",
    component: Comment
  },
  { path: "*", component: NotFound }
];

const router = new VueRouter({
  routes
});

export default router;

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93

# 优化点三

启用CDN加速

const CompressionWebpackPlugin = require('compression-webpack-plugin');
const productionGzipExtensions = ['js', 'css'];
const isProduction = process.env.NODE_ENV === 'production';
module.exports = {
  transpileDependencies: ["vuetify"],
  outputDir: __dirname + "/../server/web",
  publicPath: process.env.NODE_ENV === 'production'
    ? '/web/'
    : '/',
    configureWebpack: config => {
      if (isProduction) {
        config.plugins.push(new CompressionWebpackPlugin({
          algorithm: 'gzip',
          test: new RegExp('\\.(' + productionGzipExtensions.join('|') + ')$'),
          threshold: 10240,
          minRatio: 0.8
        }))
      }
      #分离不常用代码库转为cdn引用
      config.externals = {
        'vue': 'Vue',
        'vue-router': 'VueRouter',
        "vuetify":"Vuetify"
      }
    }
};

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27

// 在public文件夹的index.html 加载,一些css,js能用cdn的都可以用

<!-- CND -->
<script src="https://cdn.bootcss.com/vue/2.6.10/vue.runtime.min.js"></script>
    <script src="https://cdn.bootcss.com/vue-router/3.1.3/vue-router.min.js"></script>
    <script src="https://unpkg.com/vue/dist/vue.js"></script>
    <script src="https://unpkg.com/vuetify/dist/vuetify.js"></script>
    <link rel="stylesheet" href="https://fonts.googleapis.com/css?family=Roboto:100,300,400,500,700,900">
    <link rel="stylesheet" href="https://cdn.jsdelivr.net/npm/@mdi/font@latest/css/materialdesignicons.min.css">
    <link href='https://fonts.googleapis.com/css?family=Roboto:300,400,500,700|Material+Icons' rel="stylesheet" type="text/css">
    <link href="https://unpkg.com/vuetify/dist/vuetify.min.css" rel="external nofollow" rel="stylesheet">
    <link href="https://cdn.bootcdn.net/ajax/libs/gitalk/1.6.0/gitalk.min.css" rel="stylesheet">
    <link href="https://cdn.jsdelivr.net/npm/vue-loading-overlay@3/dist/vue-loading.css" rel="stylesheet">
    <link href="https://cdnjs.cloudflare.com/ajax/libs/github-markdown-css/2.10.0/github-markdown.min.css" rel="stylesheet">

1
2
3
4
5
6
7
8
9
10
11
12
13
14

# 优化点四

阿里云配置全站加速，这个大家自己去阿里云看加好了

# 结果

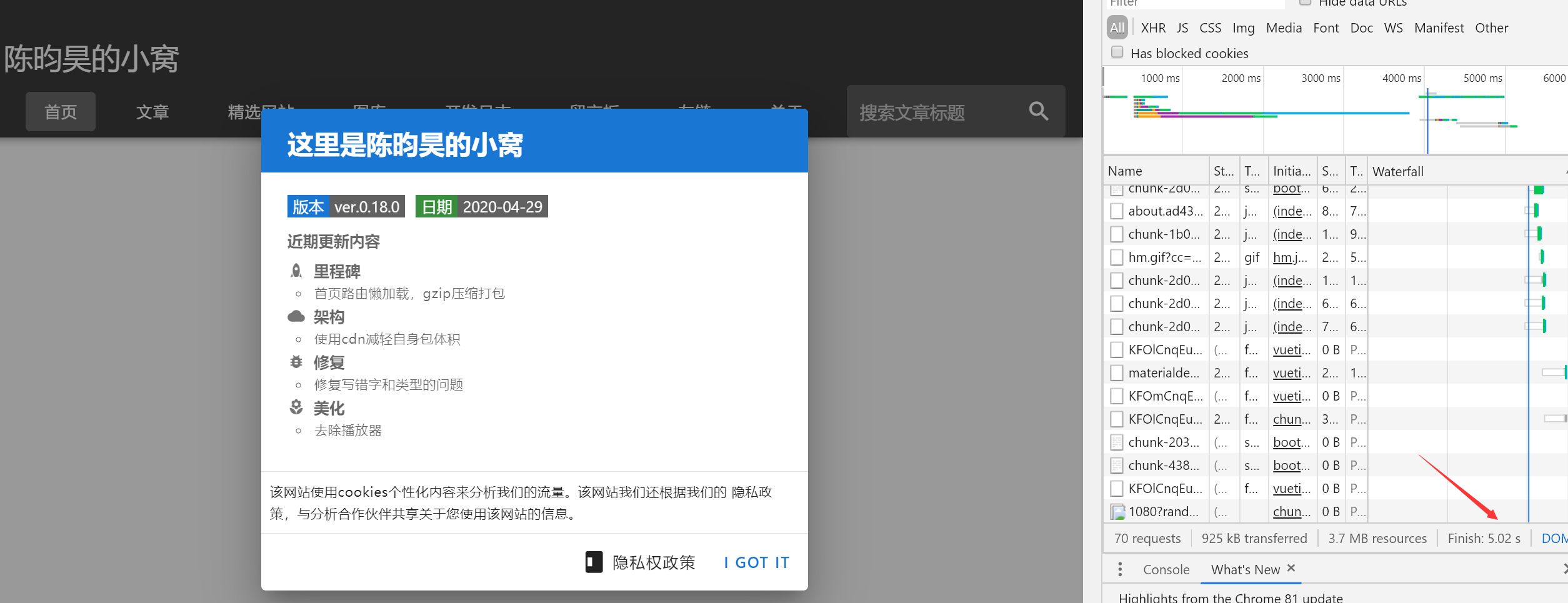

基于以上优化，我的js编译出来的文件大小由6m降低为1.4m,document加载时间由25s缩短为5m以内，降低了200%，所以优化是有用的。
